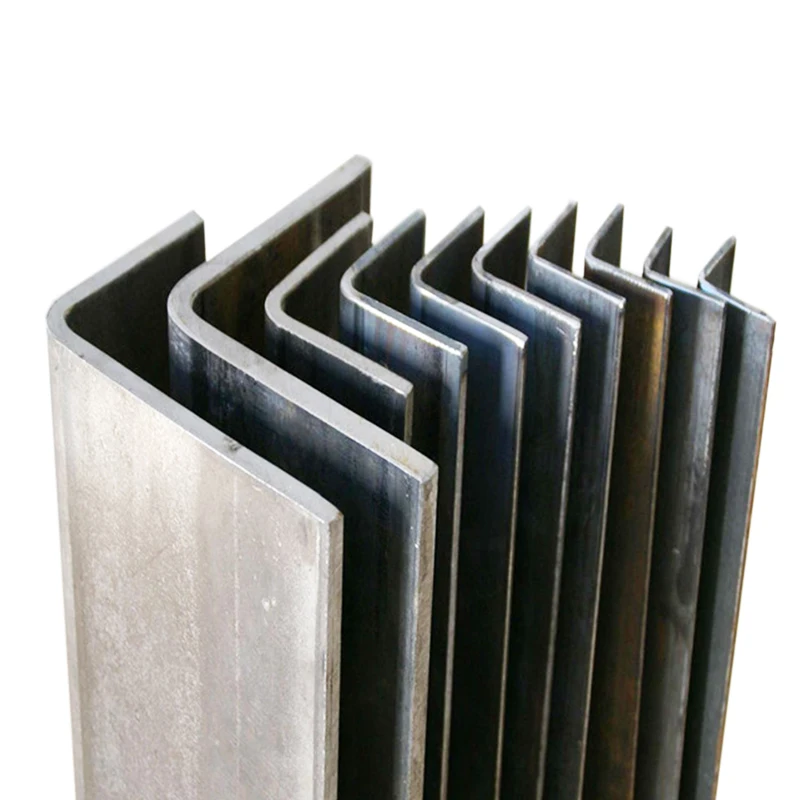

Products | Steel Angles |
Grade | Q235B,Q345B,Q420B/C,Q460C,SS400/SS540,S235JR/S235J0/S235J2,S275JR/S275J0/S275J2,S355JR/S355J0/S355J2 |
Specification | 20*20–200*200mm |
Length | 6m, 12m,Large quantity can be customized |
Technique | Hot rolled |
Application | Widely used in various building structure and engineering structure, such as the beam, bridges, transmission tower, liftingtransportation machinery, ship, industrial furnace, reaction tower and container frame etc. |
Payment Terms | L/C , T/T or Western Union |
item | Chemical composition % | Mechanical property | ||||||
steel | C % | Mn % | S % | P % | Si % | Yield pointMpa | Tensile strengthMpa | elongation % |
Q195 | 0.06-0.12 | 0.25-0.50 | < 0.050 | < 0.050 | ≤0.30 | > 195 | 315-430 | ≥33 |
Q235 | 0.09-0.15 | 0.25-0.55 | < 0.045 | < 0.045 | ≤0.30 | > 235 | 375-500 | ≥26 |
Q345 | ≤0.20 | ≤0.17 | ≤0.04 | ≤0.04 | ≤0.50 | > 345 | 470-630 | ≥20 |

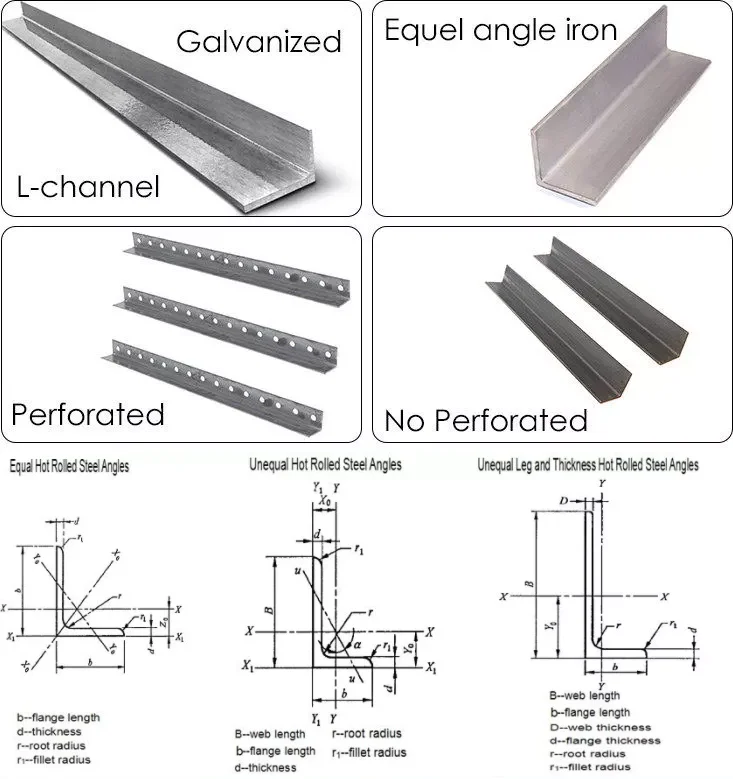

Classification of angle steel: It is usually divided according to the different specifications of both sides of the angle steel, which is divided into equal-sided angle steel and unequal-sided angle steel.

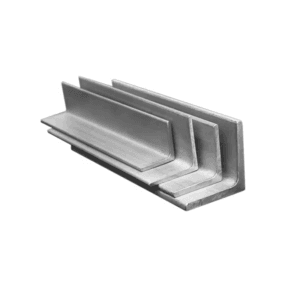

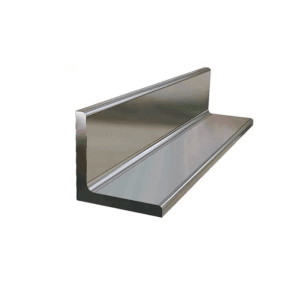

1. Equilateral angle steel, angle steel with the same length of two sides.
2, unequal angle steel, angle steel with different side lengths. The unequal-sided angle steel is also divided into unequal-sided equal-thickness angle steel and unequal-sided unequal-thickness angle steel according to the difference in the thickness of the two sides.
1. The angular structure makes it have good supporting strength.
2. Under the same supporting strength, the angle steel is lighter in weight, consumes less material, and saves costs.
3. The construction is more flexible and takes up less space.
Because of its high-cost performance, angle steel is widely used in housing construction, bridges, tunnels, wire towers, ships, brackets, steel structures, and other fields to support or fix structures.

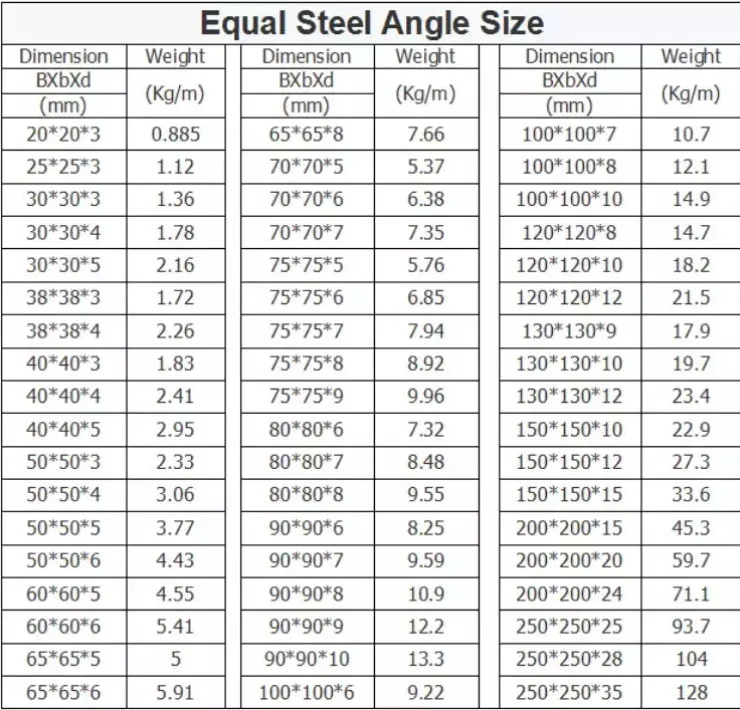

Specifications and models of angle steel: usually expressed as “side length * side length * side thickness”, for example, “50*36*3” means unequal angle steel with side lengths of 50mm and 36mm, and thickness of 3mm. There are many specifications and models of equilateral angle steel, which are selected according to the different needs of the project. The equilateral angle steel with 50mm side length and 63mm side length is mostly used.
The theoretical weight calculation formula of angle steel: meter weight (kg) = (side length mm + side length – side thickness) * side thickness mm * 0.00785. Such as 63*63*5 angle steel, meter weight = (63+63-5)*5*0.00785=4.749kg
A: Yes , we are a manufacturer,angang metal is a famous company that started earlier in China’s steel industry, with annual sales of more than 10 million tons.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication,CE ISO.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:Your payment term ?
A:TT ,trade assurance ,Western Union
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers’ benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
